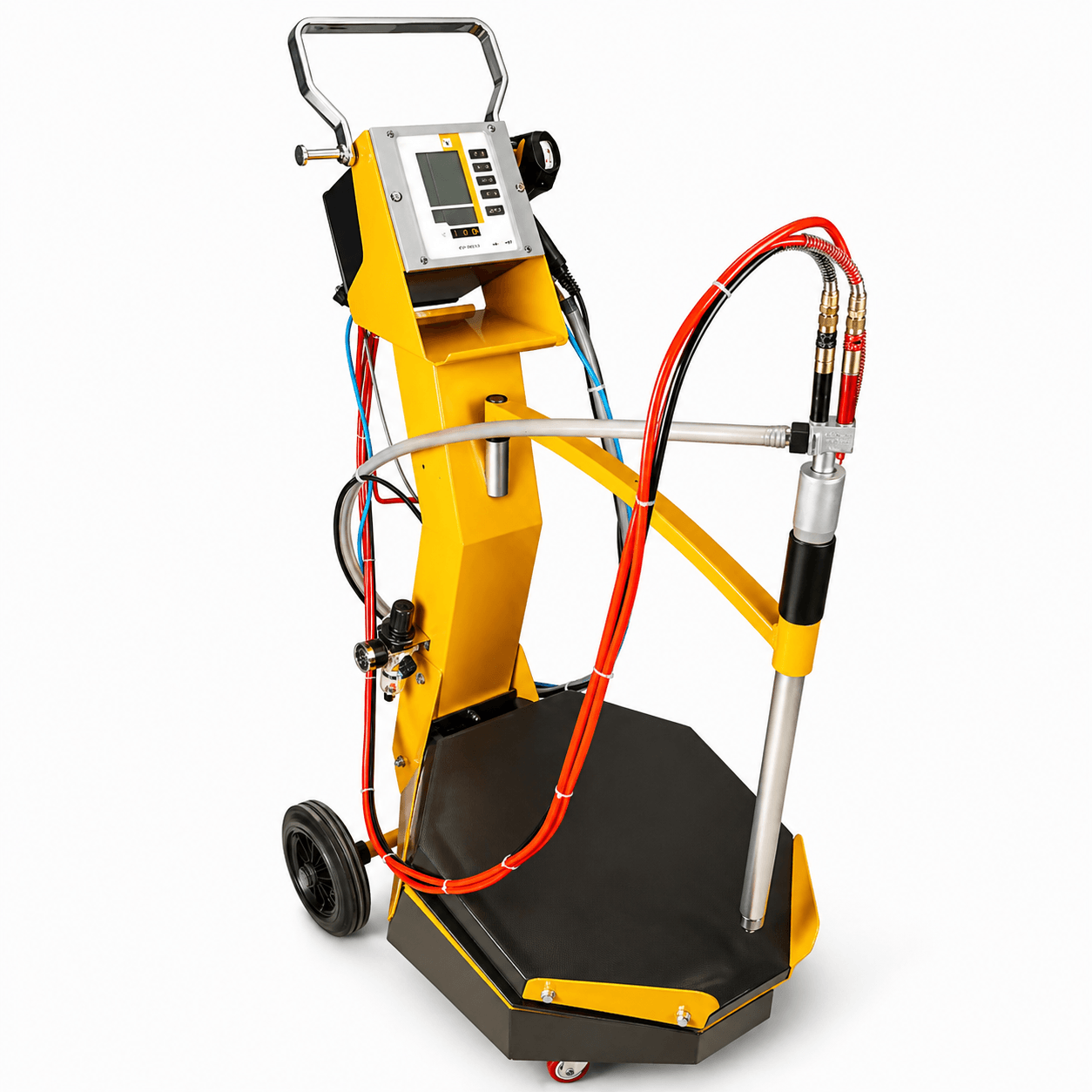

This system is designed specifically for coating needs involving multiple varieties, small batches, and frequent color changes. The unique direct powder supply from the original powder box technology eliminates the tedious steps of cleaning traditional powder buckets, allowing your coating process to leap from "hour-level color change" to "minute-level switching."
Direct Box Supply: No need to transfer powder; place a commercially available original powder cardboard box directly onto the black vibrating base.
Efficient Fluidized Extraction: The base uses high-frequency micro-vibration to keep the powder constantly loose. Combined with the angled design of the suction pump, it ensures the powder inside the box is thoroughly emptied, with no waste or dead corners.
Intuitive LCD Display: Equipped with a large digital control screen, voltage (kV) and current (µA) parameters are clearly visible, supporting micron-level performance fine-tuning.
One-Touch Preset Modes: Built-in three standard modes for flat parts, complex workpieces, and respray parts, greatly enhancing production flexibility.
Air Balance System: Precisely controls auxiliary airflow, ensuring finely atomized powder and constant, uniform powder output.
Integrated Gun Holder: Dedicated storage positions for the spray gun and powder suction hose on the side of the equipment, keeping the workspace tidy.
Lightweight Cart Structure: Features a sleeker, vertical frame design. Combined with large rear wheels and front swivel casters, it can maneuver flexibly through narrow workshop aisles.
Quick-Connect Couplers: Both air and electrical lines use industrial quick-connect couplers, enabling extremely fast maintenance and component replacement.
Strong Electrostatic Field: Maintains strong electrostatic attraction even at lower air pressures, greatly improving "transfer efficiency" at workpiece corners.
Atomization Fineness: The optimized air path design produces a uniform powder mist, eliminating spitting or uneven application, ensuring a mirror-smooth finish.
| Feature / Characteristic | Technical Description |
|---|---|
| Powder Supply Method | Vibrating Base + Direct Suction from Original Box |
| Control System | Intelligent Fully Digital Microcomputer Control |
| Color Change Speed | Extremely Fast (clean the suction hose to switch to the next powder box) |
| Chassis Material | High-Strength Industrial Coated Steel |
| Applicable Scenarios | Laboratory Sampling, Color-Change Production of Hardware Parts, Multi-Color Artistic Spraying |
| Configuration List | Mobile Cart, Vibrating Base, Control Unit, Powder Suction Pump, Professional Spray Gun |
"Make color change no longer a burden."

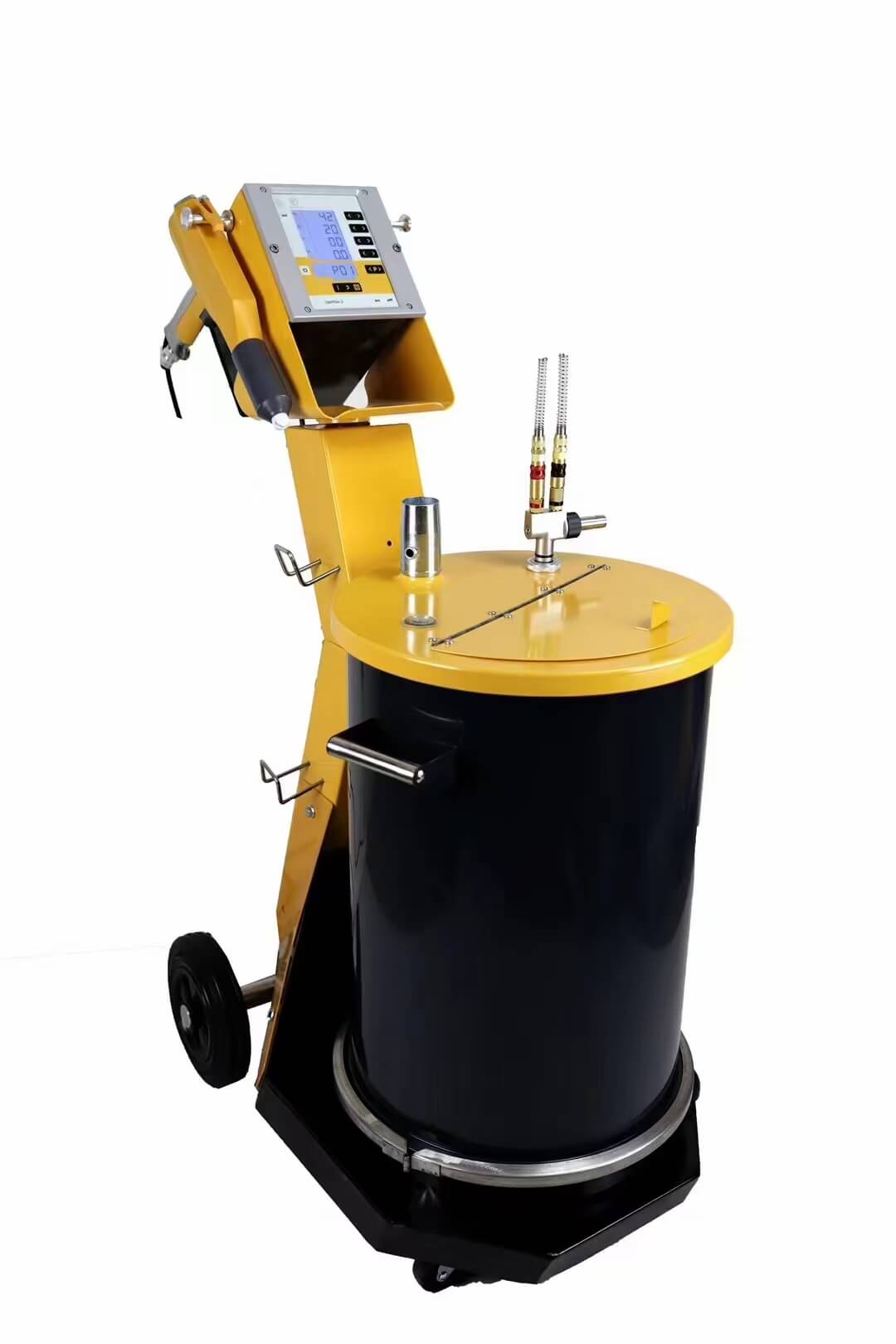

Traditional powder bucket spraying requires significant time to clean the bucket walls when changing colors. This vibration-based rapid color change equipment completely solves this pain point. It allows your operators to maintain very high equipment utilization when handling multiple small orders, making it a key tool for improving factory responsiveness.
